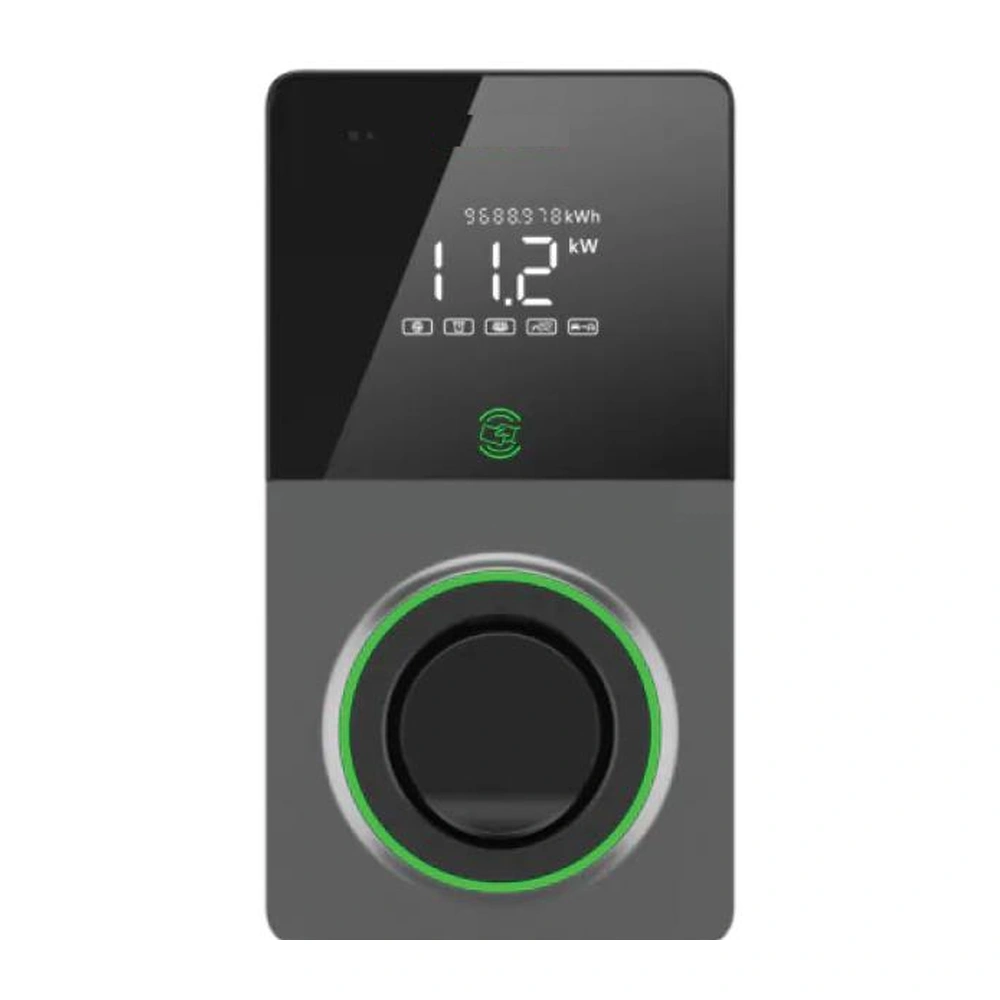

Smart EV Charger 22kW Three Phase (Digital Display)

22kW Three Phase AC Smart EV Charger with Type 2 Shutter Socket

Smart EV Charger 22kW Three Phase (Digital Display) 1

Smart EV Charger 22kW Three Phase (Digital Display) 2

Smart EV Charger 22kW Three Phase (Digital Display)

The Smart EV Charger 22kW Three Phase delivers rapid, high-capacity AC charging up to 22kW (32A, 400V) for demanding residential and commercial installations. Its heavy-duty three-phase architecture cuts EV charging times dramatically while maintaining maximum electrical safety.

Featuring an active digital display and multi-segment LED status ring, the charger presents real-time power delivery, voltage, and cumulative energy usage. Full smart connectivity over 4G LTE, Wi-Fi, Ethernet, and RS485 enables remote scheduling, energy tracking, and dynamic load balancing (ALM/DLM) to protect the property's main fuse. User access is protected via RFID contactless cards, smartphone app, or automatic Plug & Charge. Certified IP54 for outdoor installation and IK10 for exceptional impact durability.

Find a Distributor View Specifications

Why Choose This Product

Key Highlights

Ultra-fast 22kW three-phase AC commercial and residential charging

Type 2 socket with protective shutter for enhanced safety

Clear digital display showing power, voltage, and energy consumed

Comprehensive connectivity: 4G LTE, Wi-Fi, Ethernet & RS485

Flexible user authentication: RFID card, App, Autocharge, Plug & Charge

Engineered for durability with IP54 outdoor rating and IK10 impact resistance

Capabilities

Smart Features

22kW High-speed AC Charging

32A Maximum Current

Type 2 Shutter Socket

LED Status Indicators

Real-time Digital Display

4G / Wi-Fi / Ethernet connectivity

Smart Mobile App

IP54 weather resistance

IK10 impact protection

Dynamic Load Management (ALM/DLM)

Details

Technical Specifications

Charging Power	22kW AC
Maximum Current	32A
Input/Output Voltage	400V±15%, Three Phase, 50Hz (3P+N+PE)
Connector Type	IEC 62196 Type 2 Socket with shutter
Network Type	TN, TT, IT (Hardwired)
Display	Digital Tube Display + Multi-color LED Indicators
Residual Current Detection	AC 30mA + DC 6mA
Connectivity	4G, Wi-Fi, Ethernet, RS485
Communication Protocol	OCPP 1.6J, OCPP 2.0.1
Authentication	RFID Card, Mobile App, Plug & Charge, Autocharge
Protection Rating	IP54, IK10 (Indoor or Outdoor)
Operating Temperature	-30°C to +50°C
Mounting	Wall or Floor Pedestal
Dimensions (H×W×D)	315 × 170 × 107 mm
Metering Accuracy	±1%, MID Certified
Safety Standards	IEC/EN 61851-1, EN 62311, EN 62479, IEC/EN 62955
Warranty	3 Years

Interested in Smart EV Charger 22kW Three Phase (Digital Display)?

Get in Touch Browse All Products

Related Products

EV Charger

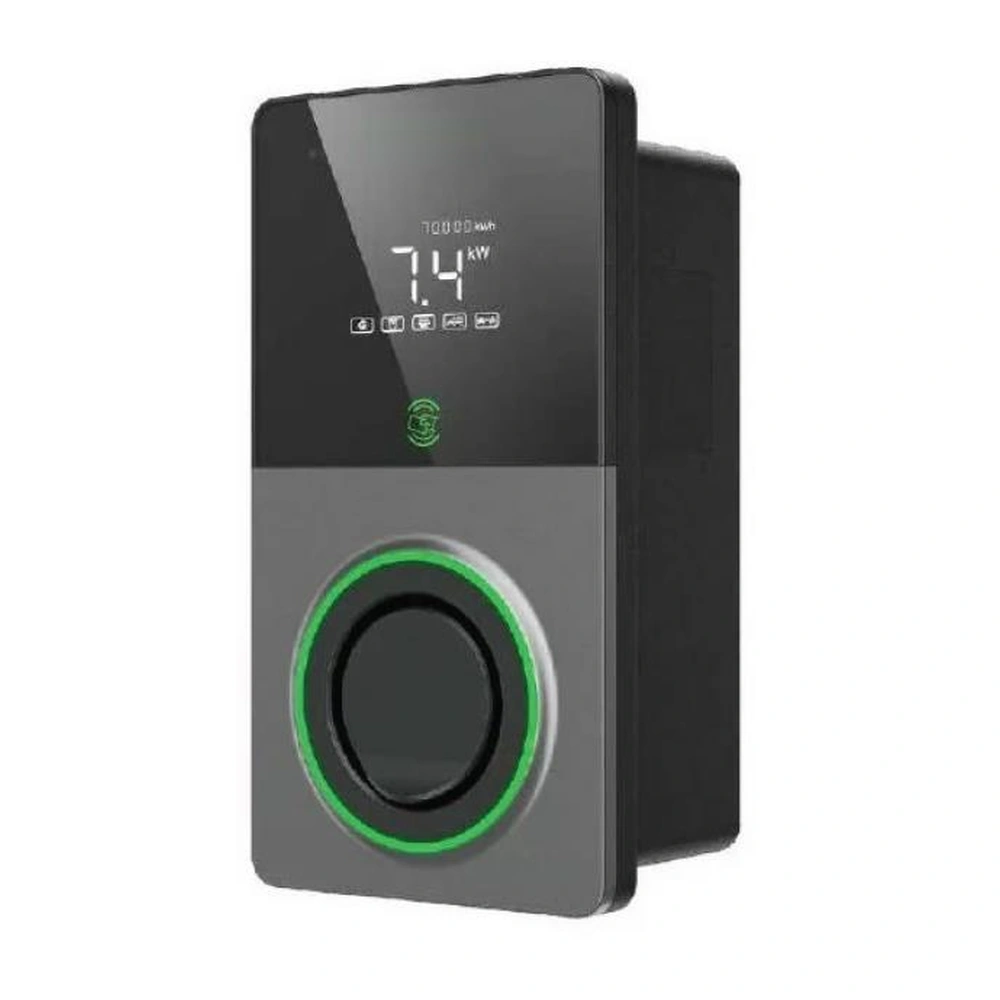

Smart EV Charger 7kW Single Phase (Digital Display)

The Smart EV Charger 7kW Single Phase is an intelligent, high-performance home and workplace AC charging solution. Designed for single-phase electrical installations (230V, 32A), it delivers up to 7kW of reliable charging power with integrated safety features. Equipped with an intuitive real-time digital display and multi-color LED halo indicator, users can easily monitor charging speed, consumed kilowatt-hours, and real-time status. Comprehensive connectivity via 4G, Wi-Fi, Ethernet, and RS485 provides seamless remote control through the smart mobile application. Flexible authentication options including RFID cards, mobile app authorization, and Plug & Charge ensure effortless, secure access. Built to withstand harsh outdoor conditions with an IP54 weatherproof rating and IK10 vandal-resistant construction.

Learn more

EV Charger

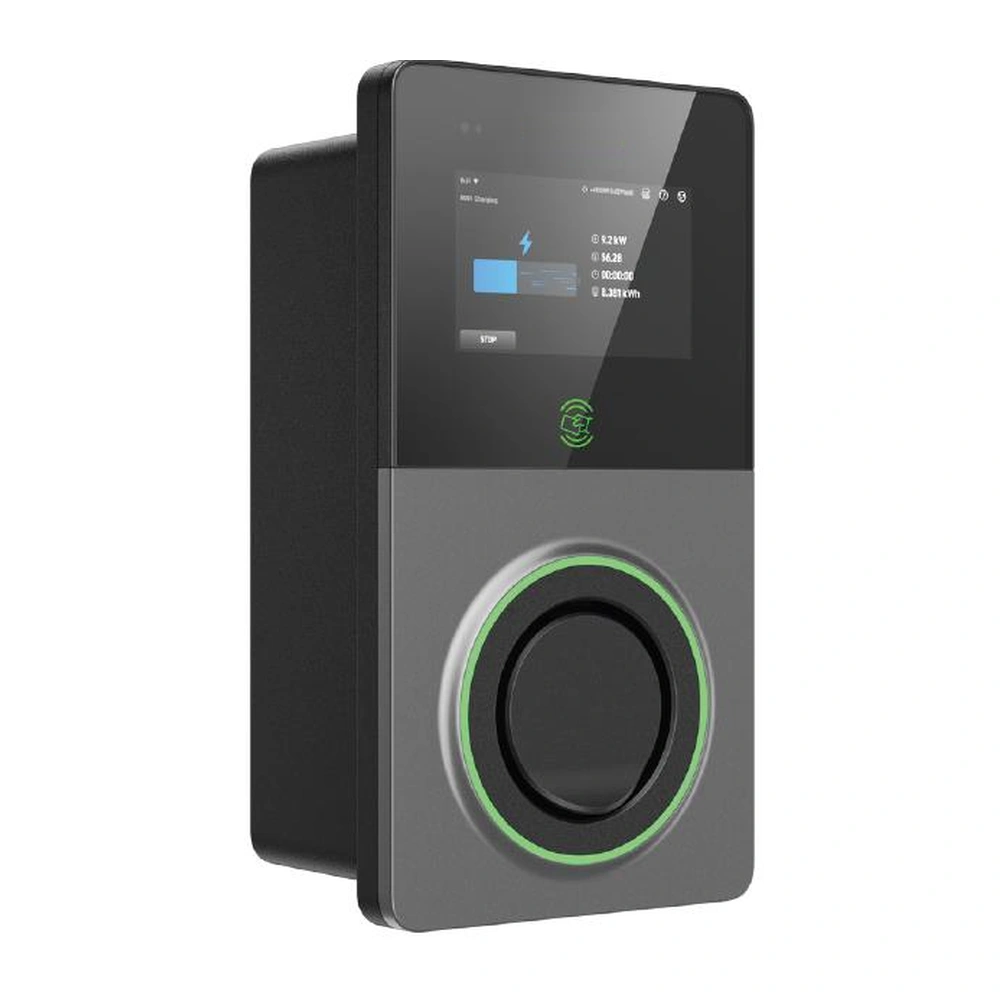

Smart EV Charger 22kW Three Phase (5" Touchscreen & PTB)

The flagship Smart EV Charger 22kW Touchscreen & PTB combines cutting-edge commercial technology with a modern user experience. Equipped with a vibrant 5-inch 800×480 color LCD touchscreen, it provides live graphical charging feedback, energy analytics, and direct on-device control. Officially PTB (German Eichrecht) and MID certified, this charger complies with legal requirements for commercial revenue billing, fleet management, and public access points. Supported by OCPP 1.6J and 2.0.1 cloud protocols, it integrates seamlessly into corporate networks and smart home energy management systems. Housed in an IP54 all-weather and IK10 impact-rated enclosure, it represents the gold standard for premium EV charging.

Learn more

EV Charger

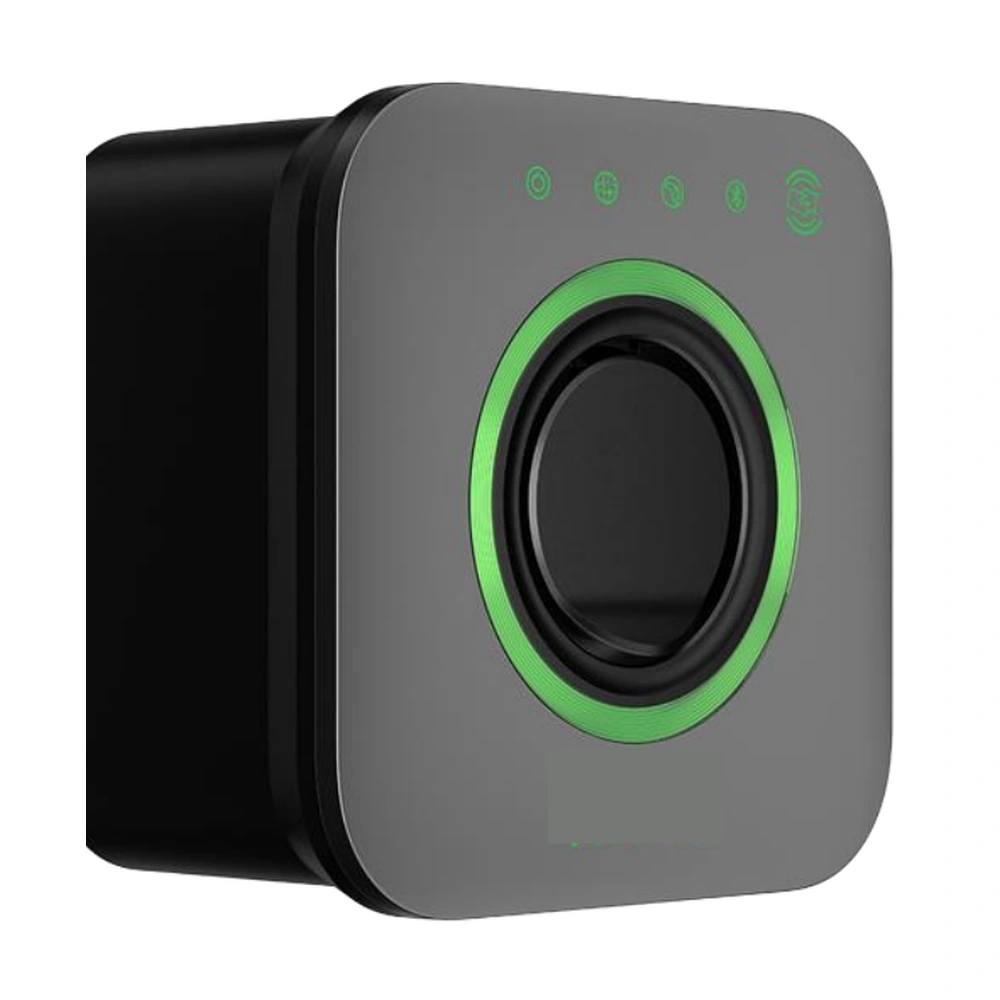

Compact AC EV Charger 22kW (Type 2 Socket)
